四柱油壓裁斷機系列
您當前的位置是:首頁>>產品展示>>四柱油壓裁斷機系列

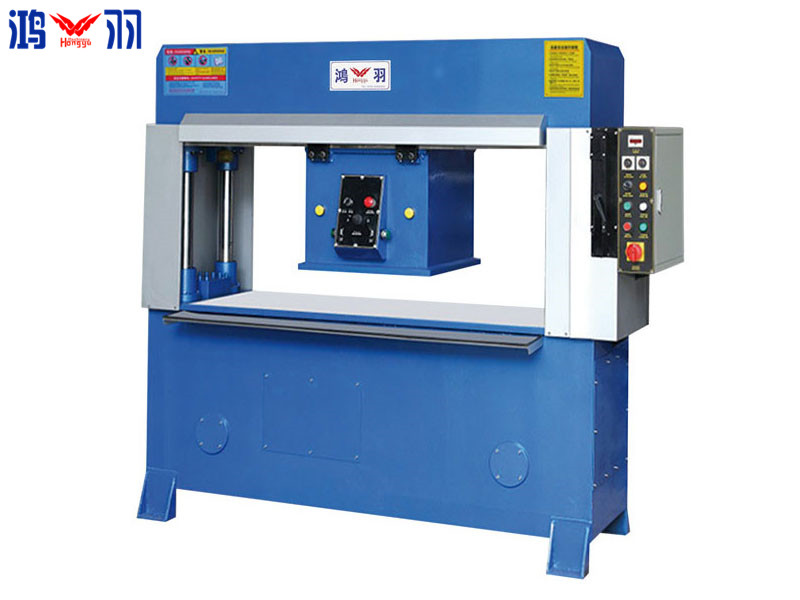

精密四柱龍門式油壓裁斷機

發布時間:2019-01-14 16:44:54  瀏覽次數:


適用于裁切一次性泡沫、吸塑包裝、珍珠棉包裝、汽車內飾等中大型片材。

Used for die cutting of medium/ large sheets such as disposable foam, blister packaging, EPE foam packaging and auto motive interiors.


◆ 可編程序邏輯控制器控制及觸屏式顯示屏,可設定和控制工作壓力,裁斷深度和送料速度,操作更加簡單精 確、快速。

◆ 雙單邊可選自動控制送料裝置,令整機生產效率提高兩至三倍。

◆ 雙油缸,四柱自動平衡連桿結構,保證每個裁斷位置裁斷深度完全相同。

◆ 油壓動力系統,裁斷板下壓接觸到模具時自動慢切,使裁料上下層無誤差。

◆ 中 央自動潤滑系統確保機器精 密度和提高機器耐用度。


◆ Controlled by PLC (Programmable Logic Controller), with touching screens; working pressure, cutting depth and feeding speed could be set and adjusted; easier, faster and more precise to operate.

◆Double/ single sided automatic working tables, increases the output twice or triple.

◆Double oil cylinder, precision four-column automatic balance rod structure, ensuring that the cutting depth is exactly the same at each cutting position.

◆Powered by hydraulic system, when the cutting plate is pressed down to contact the cutting knife, it will automatically cut slowly, so that there is no dimensional error between the uppermost layer and the lowermost layer of the cutting material.

◆Central automatic lubrication system, increases machine durability,prolong the working time.
