全自動化裁斷機系列
您當前的位置是:首頁>>產品展示>>全自動化裁斷機系列

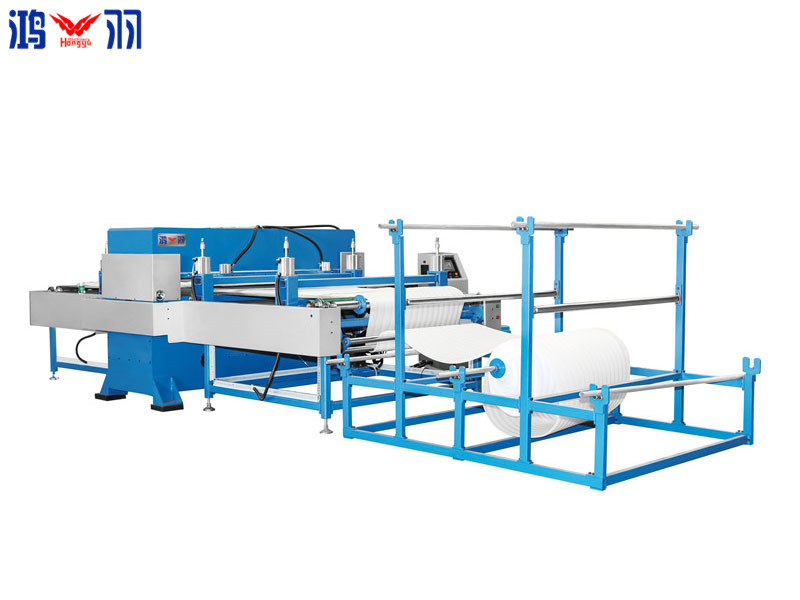

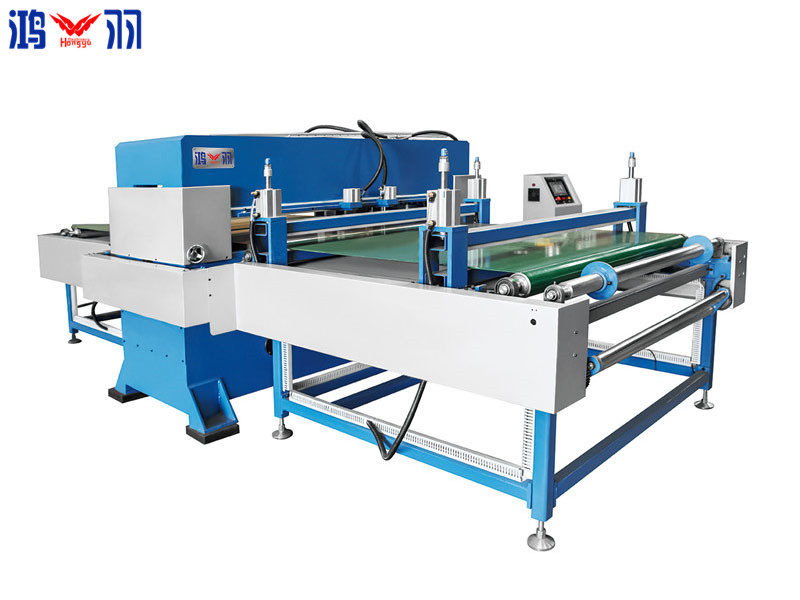

卷料送料自動裁斷機

發布時間:2019-01-14 16:45:24  瀏覽次數:



適用于卷裝軟材料(包裝行業)汽車內飾行業用品腳墊、座椅、頂棚、方向盤,裝滿材料墊板革、地板磚、地毯、磨料磨具行業砂紙、執光片、拋光輪、制球類足球、排球等行業的大型輸送帶送料自動化連續作業截斷設備.

The large conveyor belt automatic continuous feeding cutting machine is used for packaging soft materials(packaging industry),automotiv.

interior industry supplies,foot pads,seats,ceilings,steering wheels,decorative materials,padding,fioor tiles,carpets,abrasives,sandpaper polishing sheet,polishing wheel,ball making industry(soccer and volleyball)and other industries.



雙油缸,精密四柱雙連桿自動平衡四柱擋死微調機構,液壓系統控制,保障了機器的截斷速度和精度,所有滑動連接部位采用中央供油!

自動潤滑,使離損降至低。

階段頭下壓時在接觸裁刀10mm前自動緩速,使裁斷多層材料時,最上層與最下層沒有尺寸誤差。

輸送部分采用PLC控制,由伺服電機驅動物料從機器的一面輸入,由皮帶輸送帶上裁斷區域,最后由皮帶輸出,確保送料準確,皮帶不損耗,運行平穩。并且送料長度可以通過觸摸屏方便的調整,故障顯示信息,方便機器維修。

伺服電機進料、收料使對位準確控制在±0.2mm.

特有模具設定構造,配合裁刀及裁斷高度,使沖程調整簡單、準確。

中央自動潤滑系統確保機器精度及提高機器耐用度刀模的固定夾緊裝置,更換刀模方向便捷此設備規格和壓力都是根據客戶需求特別訂做。

Double cylinder,precision four-column double-link automatic balance four-column block fine-tuning mechanism and hydraulic system contral ensure the cutting speed and accuracy of the machine;all sliding joints are automatically lubricated by the central oil supply,so that the abrasion is reduced to the lowest When the stage head is pressed down 10mm to the cutting blade,it will automatically slow down.So that there is no dimensional error betweern the top layer and the bottom layer when cutting the multilayer materials.

The conveying part adopts PLC control.The materials are fed from one side of the machine driven by the servo motor,carried to the cutting area by the conveyor belt and exported by the belt,ensuring accurate feeding,no loss of belt and stable operation.And the feeding length.

can be easily adjusted through the touch screen,and the fault display infarmation is convenient for machine maintenance.

The servo motor feeds and receives the material so that the alignment is accurately controlled at ±0.2mm.

The unique mald setting structure,with the cutting tool and cutting height,make the strake adjustment simple and accurate.

The central automatic lubrication system to ensure machine accuracy and imprave machine durability.

The fixed clamping device of the cutting die;convenient to replace the cutting die.

The specification and pressure of this equipment are customized to the customer's needs.
