全自動化裁斷機系列
您當前的位置是:首頁>>產品展示>>全自動化裁斷機系列

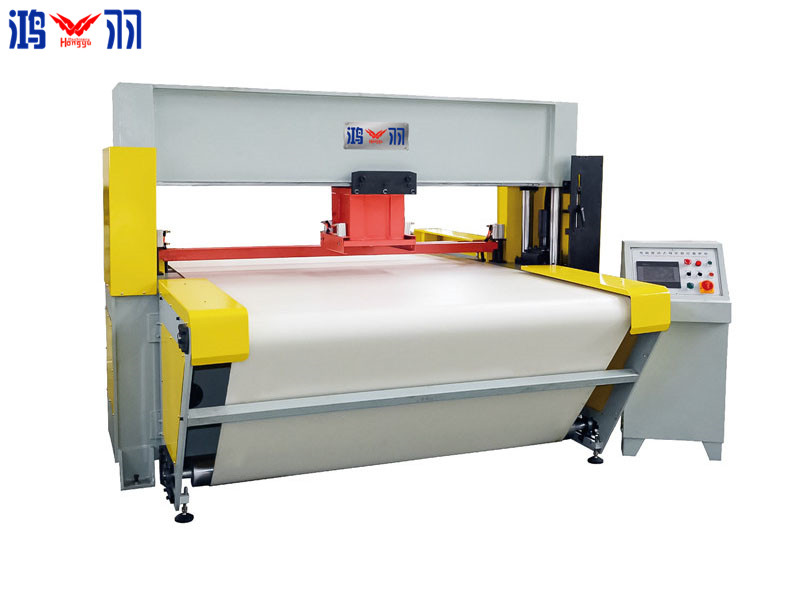

龍門式移動頭自動送料裁斷機

發布時間:2019-01-14 16:45:24  瀏覽次數:


主要用于成型刀模對單層或多層的皮件、橡膠、塑料、硬紙、織物、化纖、無紡布等材料進行沖裁落料。

設定容易,低壓調整,容易設定裁斷行程。

壓板上浮位置任意設定,減少不必要空行程。

壓板可左右橫移,操作視線好。

送料機構,伺服驅動皮帶將物料從機器一面輸入,經模切后,從另一面輸出。

送料速度可調節。

設備性能,四柱精密導向系統,雙油缸驅動,雙連桿精密平衡系統,保證裁斷區域內裁斷深度均勻,具有自動潤滑功能,機器維護方便,故障率低。

沖頭實現柔性行走,速度快、無沖擊,定位準。

密封元件采用英國或者日本材料。

機身和橫梁采用專業惰性氣體保護焊接,不變形,應力均勻,經時效處理后進行金加工,確保精度,消除應力。

慢切液壓油路系統,二段制裁切,工作穩定可靠。

實現自動送料、自動橫移、自動裁切,送料的定位精確,工作效率高,節省材料,管理方便。

.PLC控制系統,觸摸式人機界面,裁切深度控制精確,配備緊急剎車按鈕,操作方便、安全。

機器尺寸大小可定做 It is used for punching and blanking of single or multi-laver leather,rubber,.plastic.cardboard,fabric.chemical fiber,non-woven fabric and.

other materials.

Easy setting,low pressure adjustment,easy to set the cutting stroke.

The floating position on the platen can be set arbitrarily to reduce the unnecessary idle travel.

The platen can be traversed left and right,with good view for operation Feeding mechanism:

The servo drive belt feeds material from one side of the machine,and discharges from the other side after die cuttina Feeding speed can be adjustec Equipment performance:

Four-column precision guiding system,double cylinder drive,double-link precision balance system,ensuring uniform cutting depth in the cutting area,automatic lubrication function,convenient machine maintenance and low failure rate The punch achieves flexible walking,with fast speed,no impact and accurate positioning Sealing elements are made of British or Japanese materials The fuselage and crossbeam are protected by professional inert gas welding,no deformation,uniform stress,gold processing after aging treatment to ensure accuracy and eliminate stress Slow-cut hydraulic oil circuit system,two-stages cutting,stable and reliable in working Automatic feeding,automatic traverse,automatic cutting,precise positioning of feeding,high work efficiency,material saving and convenient.

management.

PLC control system,touch man-machine interface,precise cutting depth control,equipped with emergency brake button,easy and safe.

to operate.

The size of the machine can be customized
